Cresto Safety

RED PRO X Compact

Rescue and evacuation device, bag

Product number: 10696

RED Pro X Compact, a portable rescue equipment to bring with you but with the same benefits as RED Pro X Extended.

Additional inner mesh bag for rope retaining connected to the device

Intuitive and easy to use

Portable with 15 years service interval

Standards
EN 341 : 2011
EN 1496 : 2017
ANSI Z359.4-2013
CSA Z259.2.3-12
Find reseller

Product description

RESQ RPX is the latest generation of rescue and evacuation equipment from RESQ – designed and developed for easy use with intuitive functions.
The RPX can handle most rescue scenarios in various industries and extreme environments, from evacuation from high heights, lifting from deep shafts to advanced rescues, the height worker can feel confident that the equipment performance is verified.

The design and functionality of the device are based on insights from professionals working at heights daily. RPX is designed to give height workers verified confidence in extreme environments and for easy implementation of user-training and inspections.

Single-sided use for safe handling - all features on frontside - no more losing valuable time, twisting and turning the device to double-check. Universal power tool-interface for heavy lifting, up to 255m. Top-mounted swivel for optimal positioning, even in tight conditions and confined space. Laser printed, easy to read data and pictograms, engraved direct and permanently on the body. 280 kg – 255m verified and tested decent weight and height!

The device comes with a lifting function where the connection of machine-driven accessories simplifies and facilitates lifting at longer distances as standard. With the help of a power tool, the equipment can lift a load of 140 kg at a distance of 255 meters.

RPX requires a minimum of training which equals Low TCO for maintenance of training certificates for your workforce. Due to the easily recognizable and intuitive design on both rescue equipment and accessories, the kit is both practical and cost-efficient to introduce to already trained workforce which holds GWO or similar height training certificate.

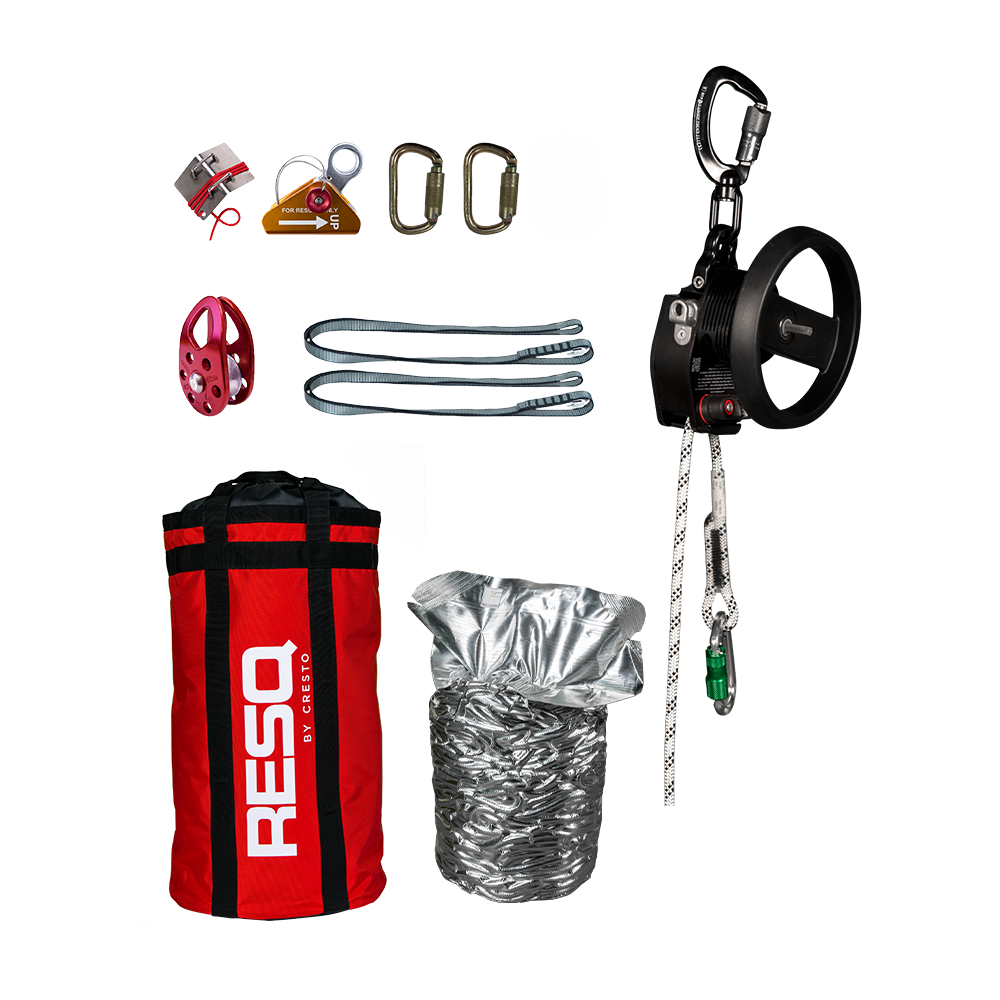

RPX Compact is delivered as a complete set in RESQ Vacuum+ (service interval of 15 years) accessory kit, which includes: 2 carabiners in steel, twist-lock, 1 edge-protector, 1 pulley, 1 rope-grab for rescue and 2 pcs. sling, 120cm long. All packed in reinforced RESQ bag.
Yearly inspection labels included in the bag.

Items

Reference
Article name
Size (m)
Colors
GTIN
Country of origin
087005511100 RESQ RPX200, Compact, 100m 100 RED 7350015793019 Slovakia
087005511125 RESQ RPX200, Compact, 125m 125 RED 7350015793590 Slovakia
087005511150 RESQ RPX200, Compact, 150m 150 RED 7350015793613 Slovakia
087005511175 RESQ RPX200, Compact, 175m 175 RED 7350015793163 Slovakia
087005511185 RESQ RPX200, Compact, 185m 185 RED 7350015792999 Slovakia
087005511095 RESQ RPX200, Compact, 95m 95 RED 7350015792890 Slovakia

Technical data

Product properties
ProductMinMaxStorageTemperature: -40/+60 °C
Brand: RESQ
Material: Polyamide, Aluminum , Techno polymers
Min/Max load (kg): 40/280
Minimum load (kg): 40
Maximum load (kg): 200
Maximum number of users: 2
Min/Max working temperature (c): -40/+60 °C
EN-standard: EN 341 : 2011, EN 1496 : 2017
Other standards: ANSI Z359.4-2013, CSA Z259.2.3-12
Notified body: 0200, FORCE Certification A/S, Main office, Park Allé 345, DK-2605 Brondby, Denmark
Annual inspection: Yes, every 12 months
Life span: 15 + 15 years. Product lifecycle 15 years + 15 after service
RFID: Yes
Warranty: 2 year
Product Includes: Backpack 9450,Sling 3683,Rope grab for rescue,Edge Protection kit,Pulley,Carabiner N-267G-CP
Declaration of Conformity: Yes
Rope: Polyamide/polyamide 32-braided kernmantle construction 9,6mm
Maximum rope length (m): 255
Fall indicator: No
Maximum descent: 255m
Descent speed (m/s): 0,9-1,6
Minimum breaking strength - MBS (kN): 20
Energy absorber: No
Gate feature: Twist lock
Gate opening (mm): 18
Gate strength (kN): 16
Attaching connector 1: Device: Steel carabiner with swivel
Attaching connector 2: Rope: Steel carabiner
Functions: Descend function, Lifting function
Extra functions: Lift with external power source & Mesh bag for rope connected directly in RPX device carabiner
Mechanics: Centrifugal brake
Lifting mechanics: Gear, ratio 1:9
Adjustable under load: Yes

Product attachments

  • 10696_RED_PRO_X_Compact_en.pdf
  • 10696_RED_PRO_X_Compact_sv.pdf
  • RESQ Vacuum solutions - version 6.pdf
  • User Instructions RPX200 & EPX200 - version 2.pdf
RESQ RPX is the latest generation of rescue and evacuation equipment from RESQ – designed and developed for easy use with intuitive functions.
The RPX can handle most rescue scenarios in various industries and extreme environments, from evacuation from high heights, lifting from deep shafts to advanced rescues, the height worker can feel confident that the equipment performance is verified.

The design and functionality of the device are based on insights from professionals working at heights daily. RPX is designed to give height workers verified confidence in extreme environments and for easy implementation of user-training and inspections.

Single-sided use for safe handling - all features on frontside - no more losing valuable time, twisting and turning the device to double-check. Universal power tool-interface for heavy lifting, up to 255m. Top-mounted swivel for optimal positioning, even in tight conditions and confined space. Laser printed, easy to read data and pictograms, engraved direct and permanently on the body. 280 kg – 255m verified and tested decent weight and height!

The device comes with a lifting function where the connection of machine-driven accessories simplifies and facilitates lifting at longer distances as standard. With the help of a power tool, the equipment can lift a load of 140 kg at a distance of 255 meters.

RPX requires a minimum of training which equals Low TCO for maintenance of training certificates for your workforce. Due to the easily recognizable and intuitive design on both rescue equipment and accessories, the kit is both practical and cost-efficient to introduce to already trained workforce which holds GWO or similar height training certificate.

RPX Compact is delivered as a complete set in RESQ Vacuum+ (service interval of 15 years) accessory kit, which includes: 2 carabiners in steel, twist-lock, 1 edge-protector, 1 pulley, 1 rope-grab for rescue and 2 pcs. sling, 120cm long. All packed in reinforced RESQ bag.
Yearly inspection labels included in the bag.
