T3 Tripod : Confined Space Kit 15 m
T3 Tripod, AB15RT and T05T
Product number: 4620
A Tripod kit for work in confined space. The kit comes with a 15 m fall arrest winch
Easy to set up
3 Overhead Pulleys 3 Fixed Eyebolts
Fall protection and rescue / Recovery in one
Standards

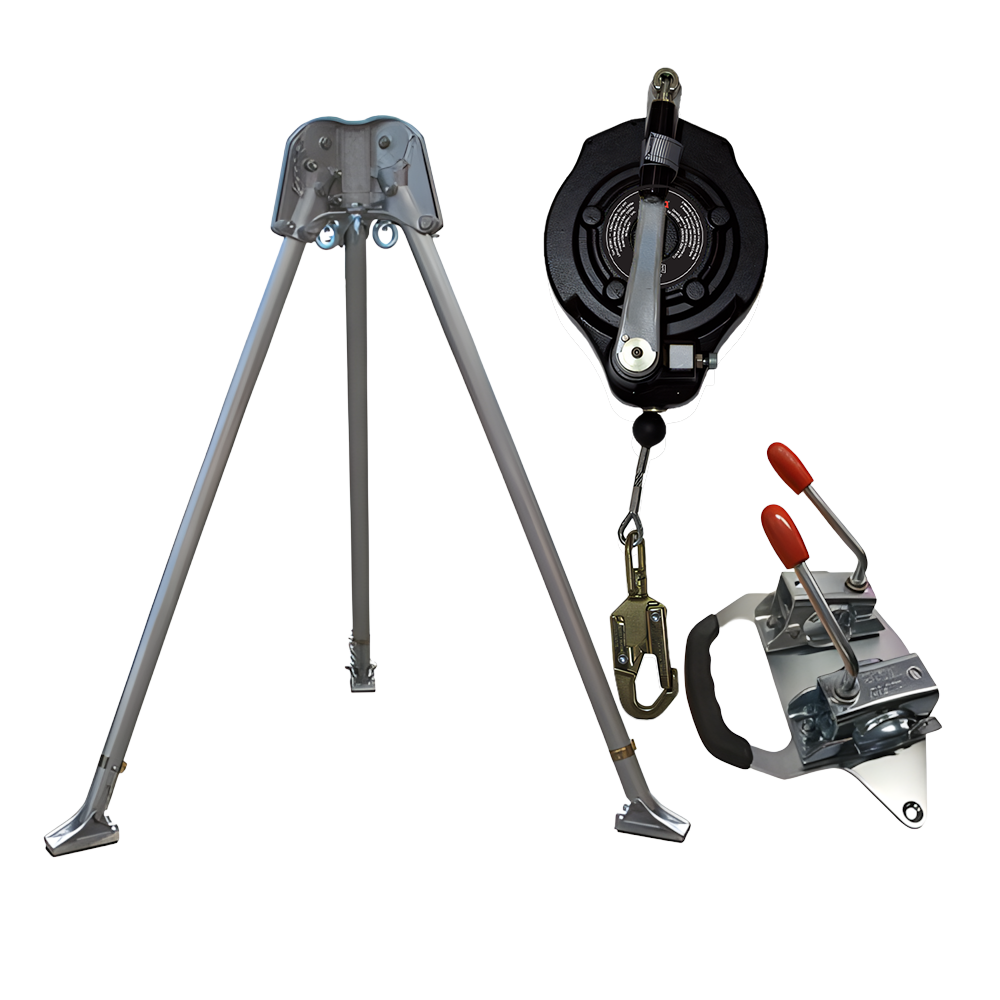

Confined Space kit with 15m Fall Arrest Winch. Contains: Tripod T3, Fall arrest winch AB15RT and attachment for fall arrest winch to tripod T05T
T3
Two Person Tripod. 3 Overhead Pulleys, 3 Underslung Eyes. Telecopic Legs,
leg Span 110cm - 170cm. Height 140cm - 240cm. For stability, the tripod legs may be individually adjusted. The T3 has 6 anchor points tested to EN795. The 3 overhead pulleys hold up to 11mm rope. Certified to EN795 Type B Attachment Points: 3 Overhead Pulleys, 3 Fixed Eyebolts. Certified to EN795 Type B, EN360, EN1496
AB15RT
TORQ 15m Fall Arrest Recovery Device is designed to provide fall protection from falls from height. Anchored above the user, it gives the user a safe area of work. The retracting line pays in and out of the device as the user moves. In the event of a fall, a brake engages, arresting the fall of the user with a controlled deceleration force.
The AB15RT has an integral winch mechanism, so in the event of a fall, the top man will be able to raise or lower the user to a safe area. Can be mounted onto Abtech Tripods and Davit arms. Swivel anchor eye on top.
Cable:
15m x 5mm Galvanised Steel. Max Recommended User Weight: Tripod: 250kg, fall arrest winch: 150kg. Weight: Tripod 19.4kg, fall arrest winch 10.40kg
