Cresto Safety

Smartline X Ultra Vacuum

Evacuation Device

Product number: 1204

Smartline X is one of the worlds smallest evacuation device on the market with a remarkable capacity of 140 kg user weight and 200 meter descent distance. This device is delivered in vacuum sealed packaging with RESQ Quick Access opening.

Extended lifetime

Capacity

Lightweight

Standards
EN 341 : 2011

Quantity:

Find reseller

Product description

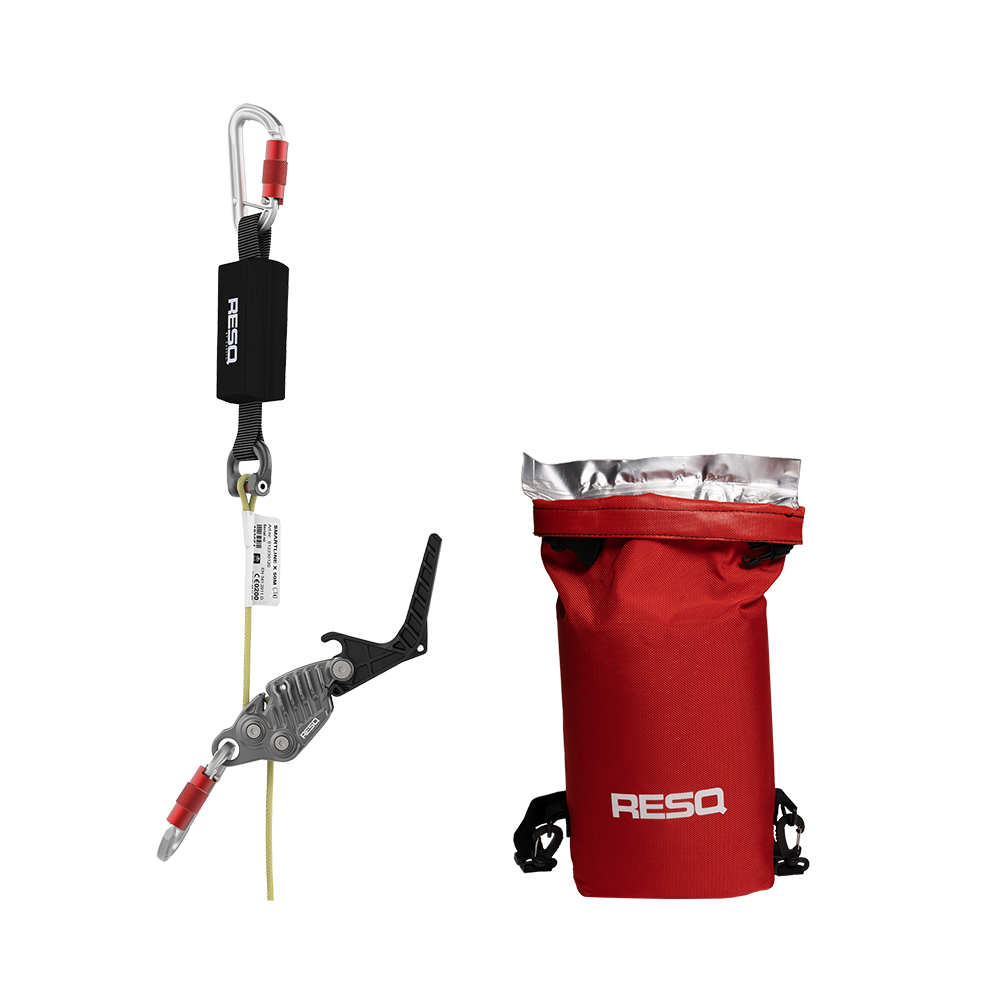

RESQ Smartline X is in its class the smallest and lightest personal evacuation equipment to its high capacity and size. With a maximum load of 140 kg, maximum descent distance of 200 meters and a total weight of 3.8 kg (200 m), Smartline X becomes unique.

With weights from 2 to 3,8 kg, it's easy to carry the equipment attached to the harness to ensure availability in an emergency, wherever you are in the elevated workplace.

The Aramid rope has an incredible strength to diameter ratio and has heat resistance over 480 C. Smartline X can even be suitable where the sudden fire appears.

We have combined two fantastic solutions into one, the original patented vacuum pack and Smartline X, both with great track records and combined them into one. The vacuum pack has been customized to fit the Smartline X. The result is a smaller and softer pack which can be opened by tearing along the opening seam. We call it RESQ Quick Access.

By packing the equipment in vacuum, moisture cannot be present in the package. It’s also impossible for the rope and other components to be worn or rubbed against each other. With Smartline X vacuum you only need to inspect the vacuum pack once a year, this enables us to prolong the total lifespan of the product to 10 years, as long as the Smartline X Vacuum pack remains intact.

Material shortages due to the pandemic have resulted in the need for Cresto Group to periodically and temporarily replace certain components on our products with replacement components fulfilling the same function. Due to this, the product images may differ from that which is delivered.

Items

Reference
Article name
Size (m)
Colors
GTIN
Country of origin
012230130 RESQ, Smartline X Ultra Vacuum, 50m 50 RED 7350015798045 Slovakia
012230131 RESQ, Smartline X Ultra Vacuum, 75m 75 RED 7350015798199 Slovakia
012230137 RESQ, Smartline X Ultra Vakuum, 80m 80 RED 7350015799813 Slovakia
012230132 RESQ, Smartline X Ultra Vacuum, 100m 100 RED 7350015798205 Slovakia
012230133 RESQ, Smartline X Ultra Vacuum, 125m 125 RED 7350015798212 Slovakia
012230134 RESQ, Smartline X Ultra Vacuum, 150m 150 RED 7350015798229 Slovakia
012230136 RESQ, Smartline X Ultra Vacuum, 160m 160 RED 7350015799592 Slovakia
012230135 RESQ, Smartline X Ultra Vacuum, 200m 200 RED 7350015798236 Slovakia

Technical data

Product properties
Brand: RESQ
Material: Aluminum , Nylon, Aramid
Minimum load (kg): 60
Maximum load (kg): 140
Maximum number of users: 1
Minimum working temperature (c): -40
Maximum working temperature (c): 50
EN-standard: EN 341 : 2011
Notified body: 0200, FORCE Certification A/S, Main office, Park Allé 345, DK-2605 Brondby, Denmark
Annual inspection: Yes, every 12 months
Life span: 10 years
RFID: Yes
Warranty: 2 year
Declaration of Conformity: Yes

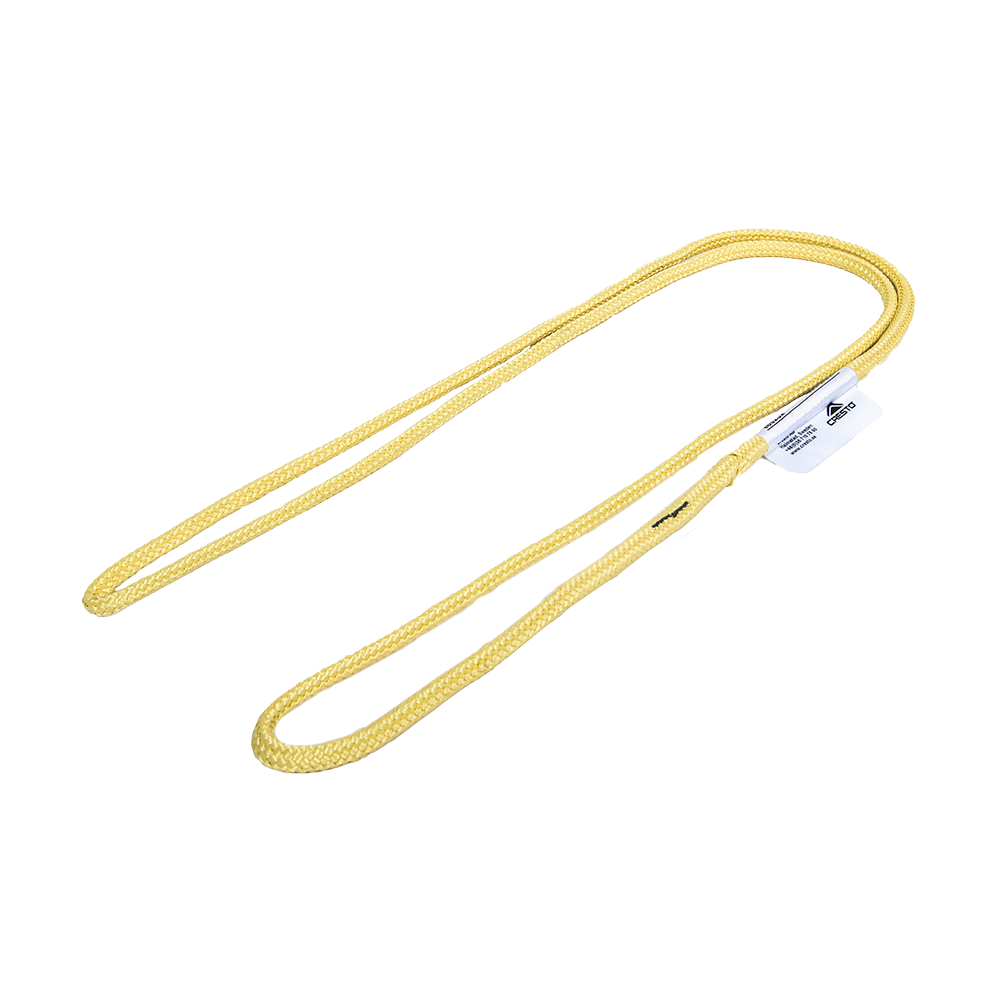

Rope: Aramid 5,5mm, 16 twill braid coreless construction
Maximum rope length (m): 200
Maximum descent: 200 meter
Descent speed (m/s): 0,5-2m/s
Energy absorber: Yes
Gate opening (mm): 20
Attaching connector 1: Device: Aluminum carabiner tri-lock
Attaching connector 2: Rope/absorber: Aluminum carabiner tri-lock
Functions: Descend function
Mechanics: Friction brake
Lifting mechanics: Method 1:3
Adjustable under load: Yes

Product attachments

  • 1204_Smartline_X_Ultra_Vacuum_en.pdf
  • 1204_Smartline_X_Ultra_Vacuum_sv.pdf
  • Instructions for use RESQ bag.pdf
  • RESQ Vacuum solutions - version 6.pdf
  • Smartline X - EU20241206.pdf
  • Smartline X - version 3.pdf
