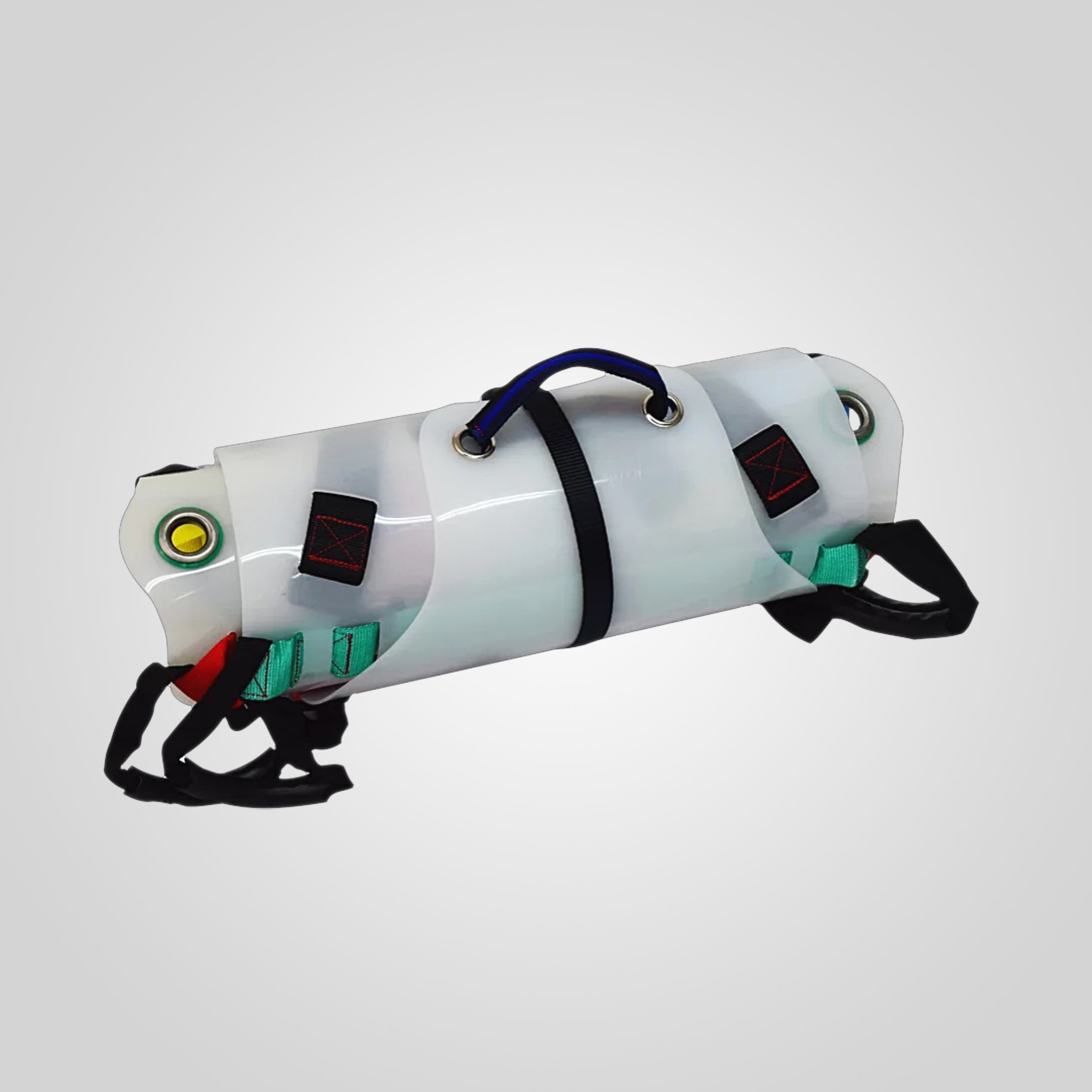

The Saviour Technical is a roll-up stretcher that only weighs 9 kg, including the standard lifting harness. It is easy to carry, easy to deploy, and easy to re-stow.
Saviour Technical Stretcher
Rescue strecher
- Neutrally buoyant - so floats if dropped overboard. Will float with a patient in a lifejacket
- Xray translucent and CT friendly
- For vertical and horisontal lift
The Saviour Technical is a roll-up stretcher that only weighs 9 kg, including the standard lifting harness. It is easy to carry, easy to deploy, and easy to re-stow.
Description

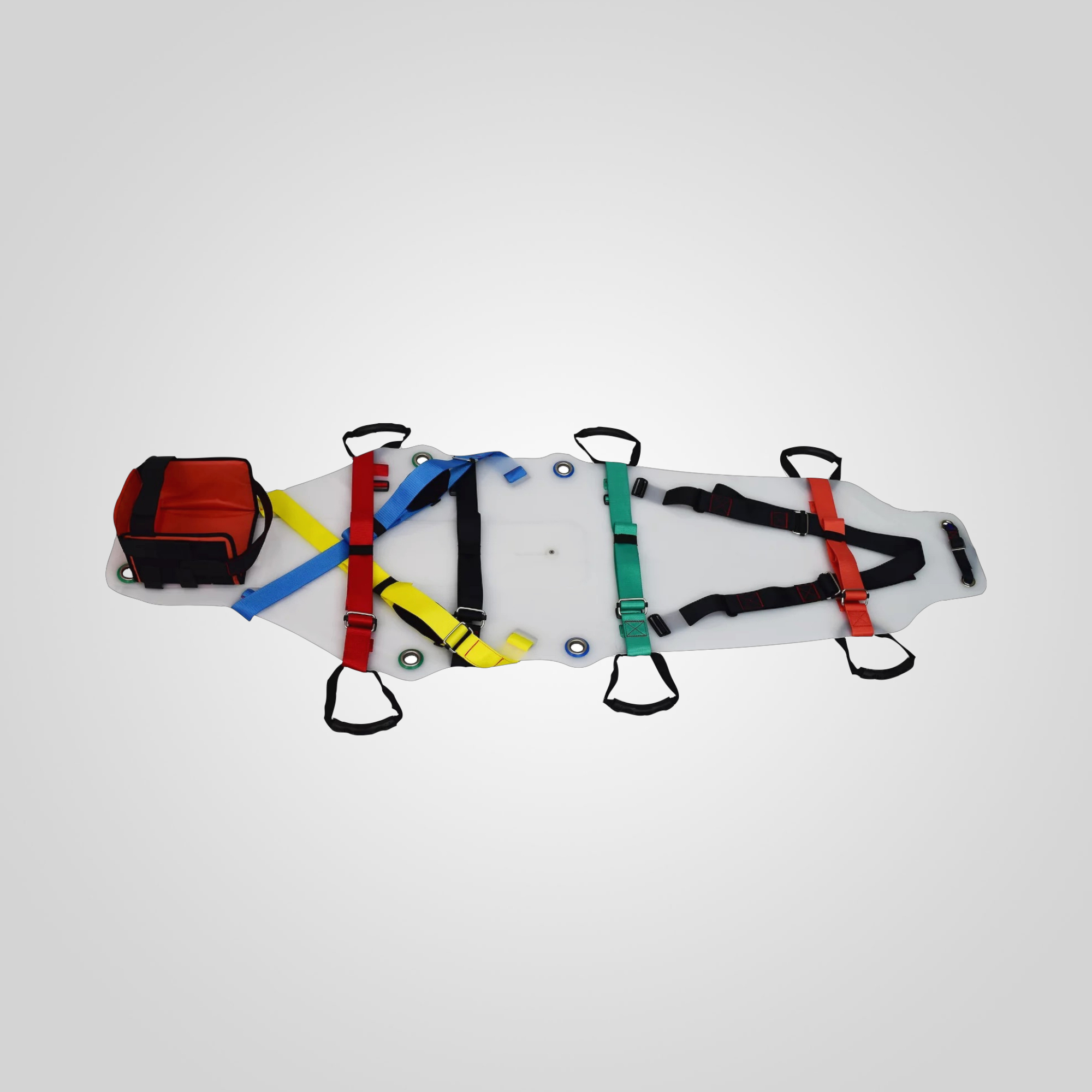

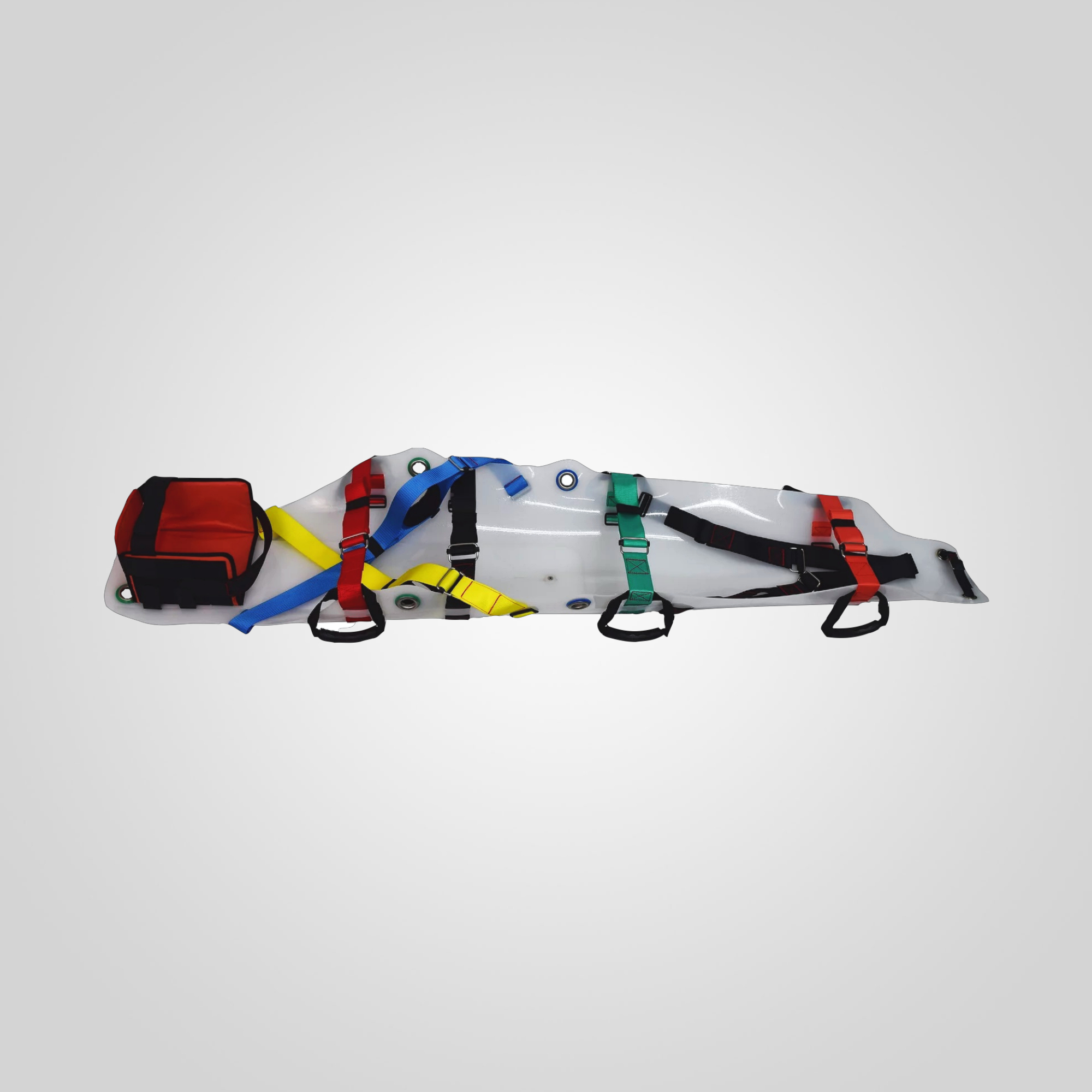

Saviour stretcher, weighing just under 5kg, the Saviour Stretchers come supplied in a roll-top shoulder bag. Packed bag dimensions are; 70cm long x 30cm wide x 30cm high. Once out of the bag the Saviour's LDPE skin lays flat following a simple reverse bend at each end.
Colour coded straps make for intuitive use without prior training. The figure of eight at the feet and the cross straps at the chest secure the patient when lifting vertically. Saviour Stretchers feature 6 reinforced handholds to allow for easy extended duration carries, and is easily carried by 2 or 4 people."
Segments
- Pitch roof work
- General industry
- Tower climber
- MEWPs
- Offshore
- Confined space
- Scaffolding
- Rope access
- Telecom
- Wind energy
PRODUCT PROPERTIES |
|
| Product includes | Stretcher, connection system including groin harness, lifting system and bag |
| Packinging type | Bag |
| Maximum number of users | 1 |
| Maximum load (kg) | 200.0 |
| Minimum working temperature (c) | -30.0 |
| Maximum working temperature (c) | 45.0 |
| Material | Polyamide, Polyethylene |
| Functions | Lifting function |
CLASSIFICATION |
|
| Notified body | 0321, SATRA Technology Centre, Wyndham Way, Telford Way, NN16 8SD Kettering, Northamptonshire, United Kingdom |
ANNUAL INSPECTION |
|
| Life span | 10 years |
| Warranty | 2 year |
| RFID | No |
DOCUMENTS |
|
| Declaration of Conformity | Yes |
| Manual languages | English (EN) |
| 012230343 | Saviour Technical Strecher |
| Product sheet | Saviour Technical Stretcher |
| Declaration of Conformity | Saviour Technical Strecher DoC |
| User manual | Savior Technical Strecher user manual |
| Product Sheet | Savior Technical Strecher tecnical info |
