The latest generation automatic evacuation and rescue device with superior properties.
Material shortages due to the pandemic have resulted in the need for Cresto Group to periodically and temporarily replace certain components on our products with replacement components fulfilling the same function. Due to this, the product images may differ from that which is delivered.
RED PRO X Mobile
Rescue and evacuation device
- Extremely good lifting capacity
- Water sealed brake housing
- In lift certified bag
The latest generation automatic evacuation and rescue device with superior properties.
Material shortages due to the pandemic have resulted in the need for Cresto Group to periodically and temporarily replace certain components on our products with replacement components fulfilling the same function. Due to this, the product images may differ from that which is delivered.
Size
Description

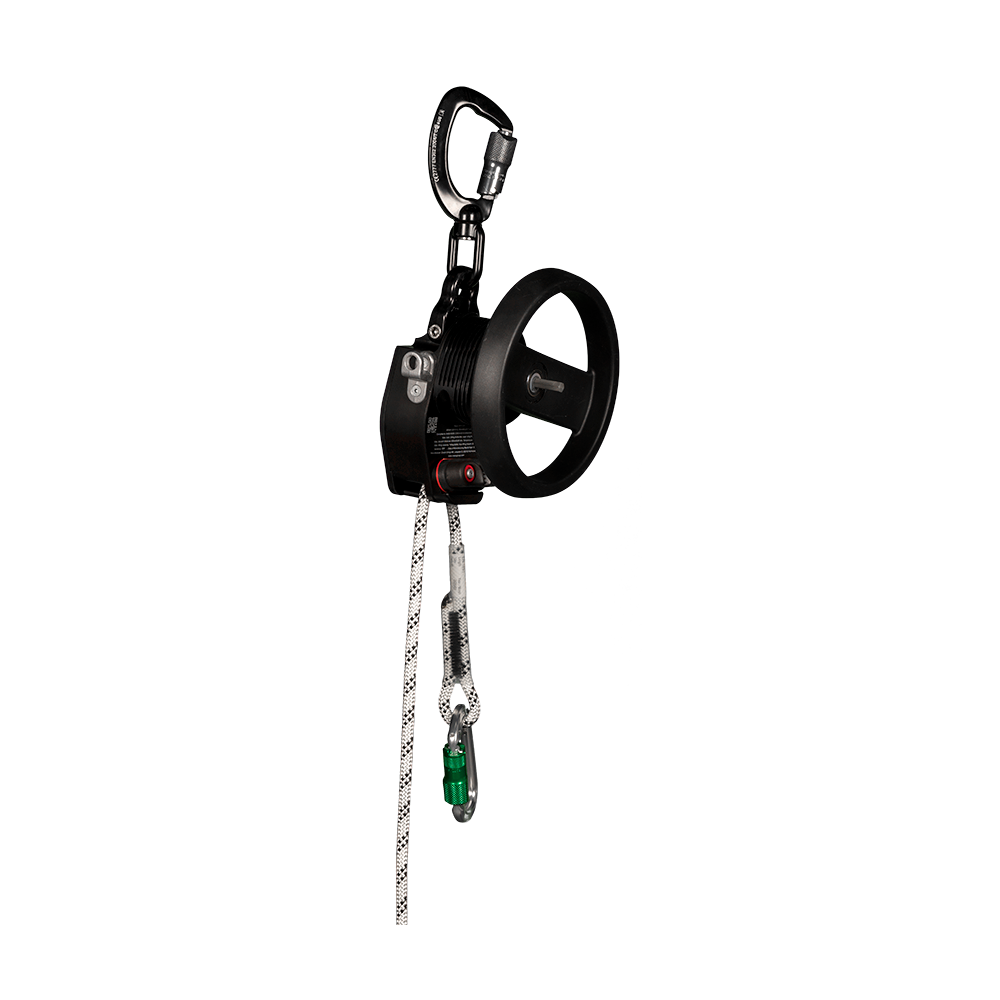

RESQ RPX is the latest generation of rescue and evacuation equipment from RESQ – designed and developed for easy use with intuitive functions.
The RPX can handle most rescue scenarios in various industries and extreme environments, from evacuation from high heights, lifting from deep shafts to advanced rescues, the height worker can feel confident that the equipment performance is verified.
The design and functionality of the device are based on insights from professionals working at heights daily. RPX is designed to give height workers verified confidence in extreme environments and for easy implementation of user-training and inspections.

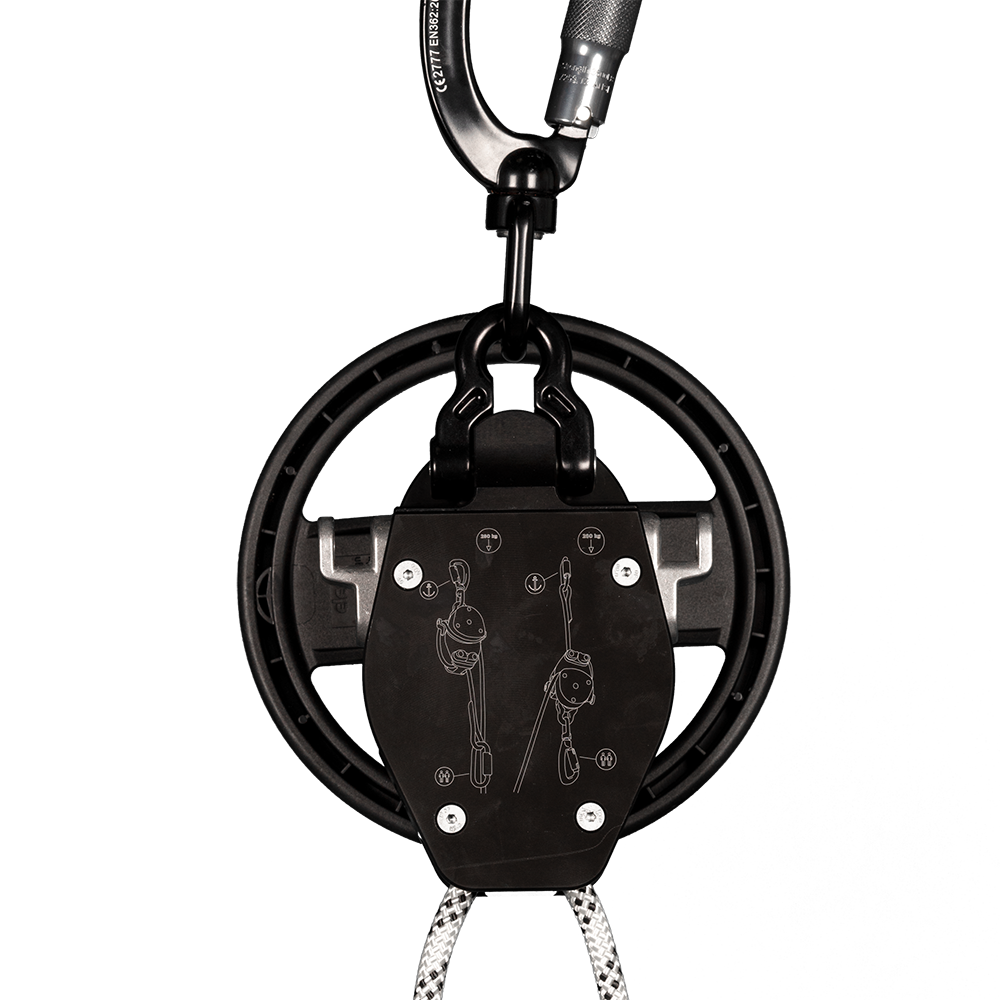

Single-sided use for safe handling - all features on frontside - no more losing valuable time, twisting and turning the device to double-check. Universal power tool-interface for heavy lifting, up to 255m. Top-mounted swivel for optimal positioning, even in tight conditions and confined space. Laser printed, easy to read data and pictograms, engraved direct and permanently on the body. 280 kg – 255m verified and tested decent weight and height!

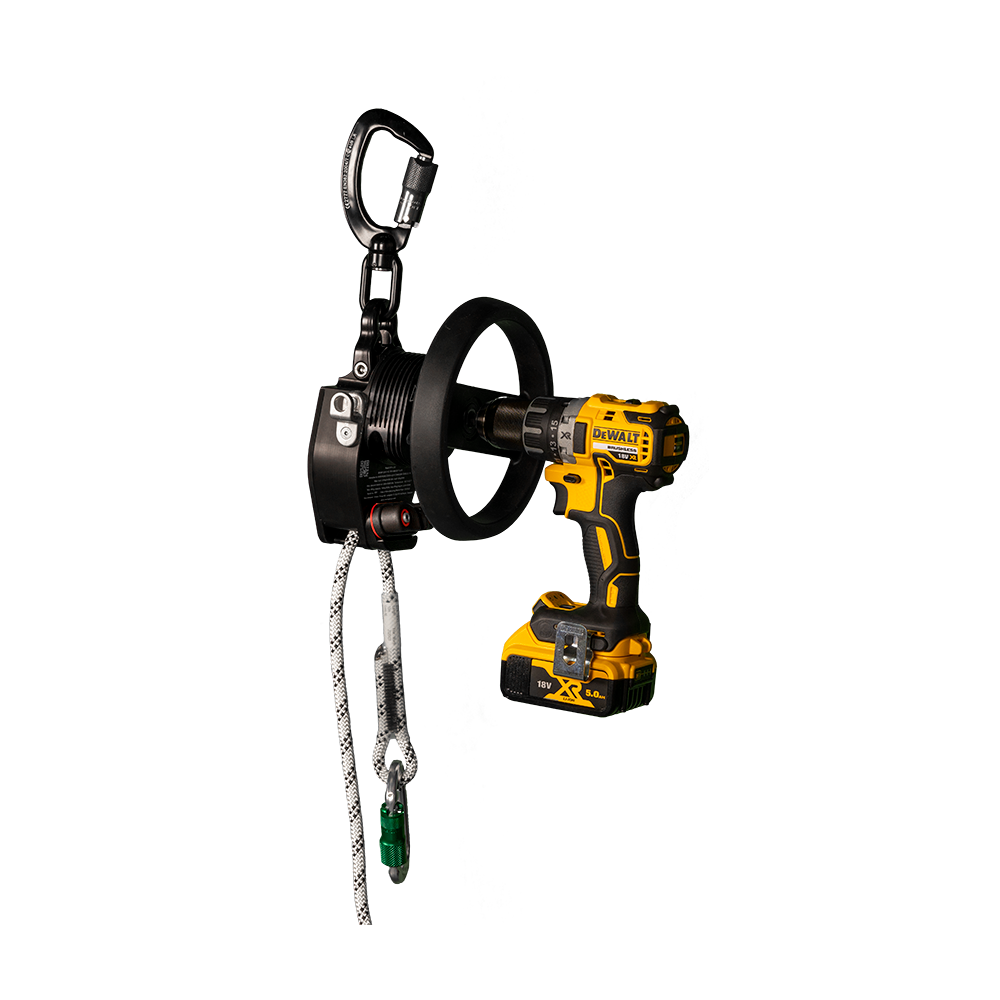

The device comes with a lifting function where the connection of machine-driven accessories simplifies and facilitates lifting at longer distances as standard. With the help of a power tool, the equipment can lift a load of 140 kg at a distance of 255 meters.
RPX requires a minimum of training which equals Low TCO for maintenance of training certificates for your workforce. Due to the easily recognizable and intuitive design on both rescue equipment and accessories, the kit is both practical and cost-efficient to introduce to already trained workforce which holds GWO or similar height training certificate.

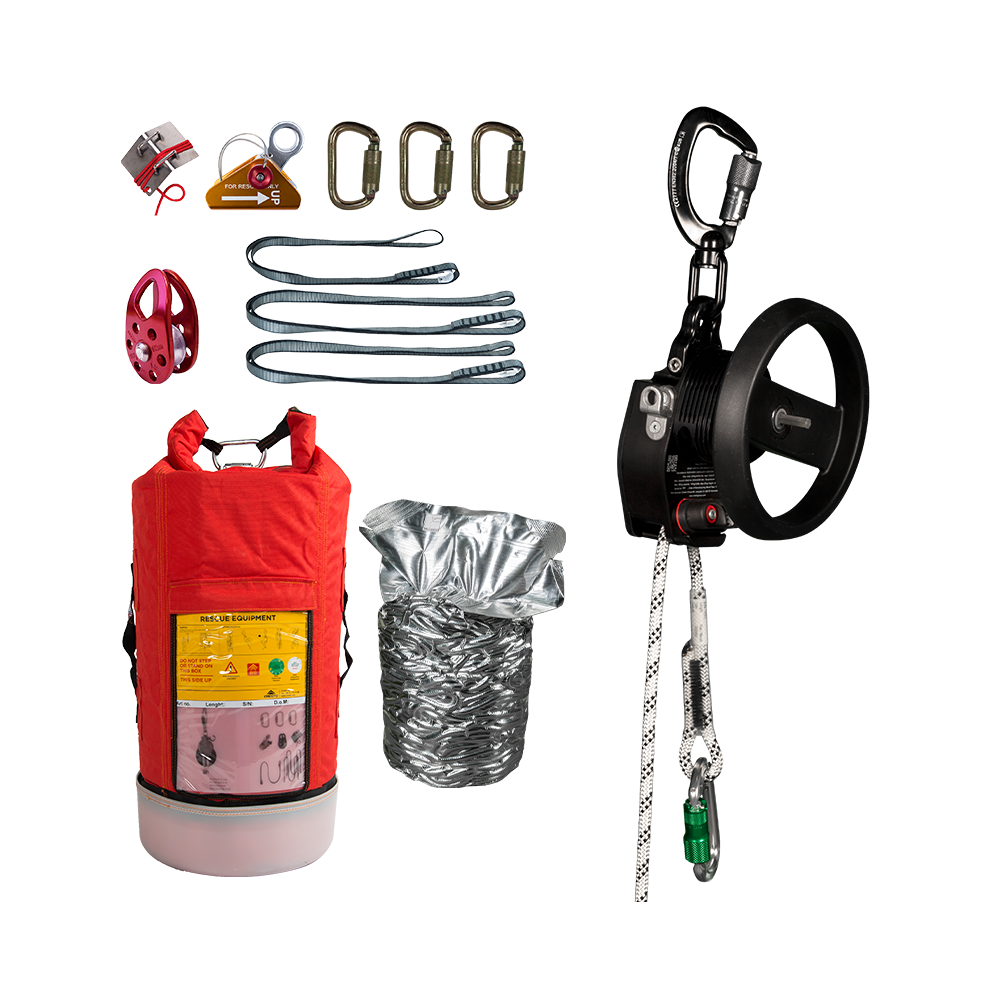

RPX Mobile is delivered as a complete set in RESQ Vacuum (service interval of 10 years), lifting pack and accessory kit.
Segments
- Pitch roof work
- General industry
- Tower climber
- MEWPs
- Offshore
- Confined space
- Wind energy
Product includes
Video
PRODUCT PROPERTIES |
|
| Product includes | Rope, 2pc anchor sling 1,2m, 1pc anchor sling 0,8m, edge protector with steel carabiner twist lock, pulley 22kN, rescue rope grab, 2pc steel carabiner twist lock, inspection set and lift certified bag |
| Packinging type | Vacuum |
| Attaching connector 1 | Device: Aluminum carabiner with swivel |
| Attaching connector 2 | Rope: Aluminum carabiner |
| Gate strength (kN) | 16.0 |
| Gate feature | twist lock |
| Adjustable under load | Yes |
| Energy absorber | No |
| Fall indicator | No |
| Mechanics | Centrifugal brake |
| Lifting mechanics | Gear, ratio 1:9 |
| Descent speed (m/s) | 0,9-1,6 |
| Maximum number of users | 2 |
| Maximum rope length (m) | 255.0 |
| Maximum descent | 255 meters |
| Minimum load (kg) | 40.0 |
| Maximum load (kg) | 200.0 |
| Minimum working temperature (c) | -40.0 |
| Maximum working temperature (c) | 50.0 |
| Minimum breaking strength - MBS (kN) | 20.0 |
| Material | Polyamide, Aluminum , Techno polymers |
| Functions | Descend function, Lifting function |
| Extra functions | Lift with external power source |
| Rope | Polyamide/polyamide 32-braided kernmantel construction 9,6mm |
CLASSIFICATION |
|
| PPE-category | Category 3 |
| EN-standard | EN 1496 : 2017, EN 341 : 2011 |
| Notified body | 0200, FORCE Certification A/S, Main office, Park Allé 345, DK-2605 Brondby, Denmark |
| Other standards | ANSI Z359.4-2013, CSA Z259.2.3-12 |
ANNUAL INSPECTION |
|
| Annual inspection | Yes, every 12 months |
| Life span | 10 + 10 years. Product lifecycle 10 years + 10 years after service. Lifting bag, 5 years |
| Warranty | 2 year |
| Identification | Serial number |
| RFID | Yes |
DOCUMENTS |
|
| Declaration of Conformity | Yes |
| Manual languages | Chinese (ZH), Czech (CS), Danish (DA), Dutch (NL), English (EN), Estonian (ET), Finnish (FI), French (FR), German (DE), Italian (IT), Norwegian (NO), Polish (PL), Portuguese (PT), Spanish (ES), Swedish (SV), Turkish (TR) |
| 087003231050 | RESQ, RPX200 Mobile, 50m, lift bag, vacuum, accs. |
| 087003231075 | RESQ, RPX200 MOBILE, 75M, LIFT BAG, VACUUM, ACCS. |
| 087003231100 | RESQ, RPX200 Mobile, 100m, lift bag, vacuum, accs. |
| 087003231125 | RESQ, RPX200 Mobile, 125m, lift bag, vacuum, accs. |
| 087003231150 | RESQ, RPX200 Mobile, 150m, lift bag, vacuum, accs. |
| 087003231175 | RESQ, RPX200 Mobile, 175m, lift bag, vacuum, accs. |
| 087003231200 | RESQ, RPX200 MOBILE, 200M, LIFT BAG, VACUUM, ACCS. |
| 087003231083 | RESQ, RPX200 Mobile, 83m, lift bag, vacuum, accs. |
| Product sheet | RED PRO X Mobile |
| User manual | RESQ Vacuum solutions - version 3 |
| Declaration of Conformity | RPX200 & EPX200 - EU 20220421 |
| User manual | RPX200 & EPX200 - version 2 |
