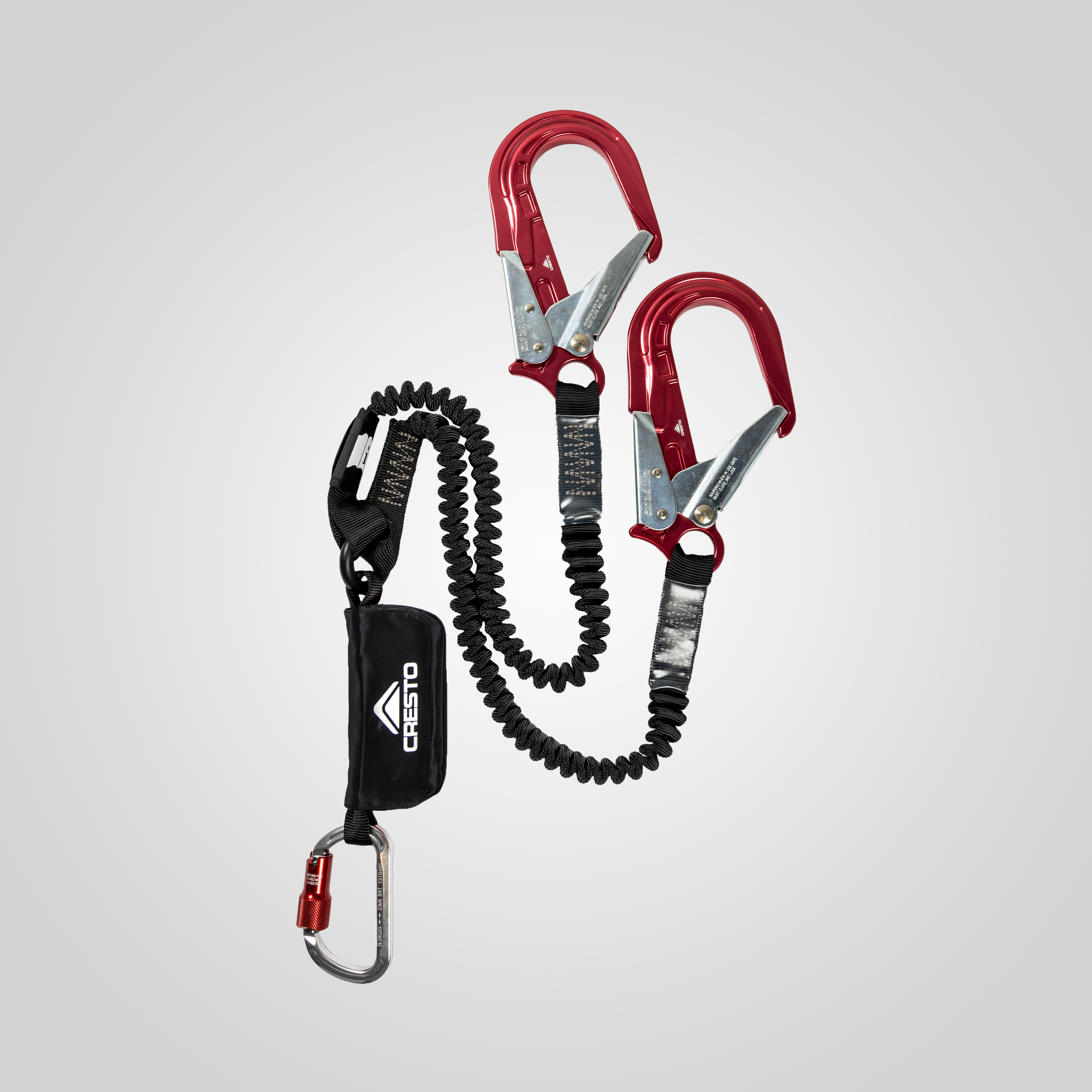

The Fusion Twin-Flex H-A is a double fall arrest lanyard with flexible webbing and ANSI certified "12ft", which can handle a user weight of up to 140 kg.
Fusion Pro Twin-Flex
Fall Arrest Lanyard 1602
- CE and ANSI certified
- Approved for 140 kg
- Elastic webbing
The Fusion Twin-Flex H-A is a double fall arrest lanyard with flexible webbing and ANSI certified "12ft", which can handle a user weight of up to 140 kg.
Color
Size
Description
A double fall arrest lanyard is designed to suit you who need to move when you work at heights. With double hooks you always have a hook anchored when you move with the other hook. This is to provide the optimum security on, for example, scaffolding, mobile platforms or industries.
Fusion Twin-Flex is manufactured as a flexible tube with internal elasticity, which allows you to stretch the line to a maximum length of 1.8 meters. At the beginning of the rope there is an external absorber mounted which is released in case of a fall. Unlike Energy Twin-Flex this fall arrest lanyard is ANSI certified and are approved for a user weight up to 140 kg. Between the absorber and the lanyard there is an aluminum ring to increase flexibility in use
Segments
- General industry
- Tower climber
- Offshore
- Wind energy
PRODUCT PROPERTIES |
|
| Attaching connector 1 | ANSI and CE certified triple lock carabiner in aluminum |
| Attaching connector 2 | Big ANSI and CE certified aluminum hook with 64 mm opening |
| Gate strength (kN) | 16.0 |
| Energy absorber | Yes |
| Fall indicator | Yes |
| Mechanics | Tear-webbing absorber |
| Maximum number of users | 1 |
| Maximum load (kg) | 140.0 |
| Minimum working temperature (c) | -40.0 |
| Maximum working temperature (c) | 100.0 |
| Minimum breaking strength - MBS (kN) | 25.0 |
| Material | Polyamide, Polyester |
CLASSIFICATION |
|
| EN-standard | EN 355 : 2002 |
| Notified body | 1019, VVUU, a.S., Pikartska 1337/7 716 07 Ostrava - Radvanice Czech Republic |
| Other standards | ANSI Z359.13 |
ANNUAL INSPECTION |
|
| Annual inspection | Yes, every 12 months |
| Life span | 10 + 2 years. Product lifecycle 10 years + 2 years stock keeping |
| Warranty | 2+1 year when registered in Inspector |
| Identification | Serial number |
| RFID | Yes |
DOCUMENTS |
|
| Declaration of Conformity | Yes |
| Manual languages | Czech (CS), Danish (DA), Finnish (FI), French (FR), German (DE), Greek (EL), Norwegian (NO), Slovak (SK), Spanish (ES), Swedish (SV) |
| 012203835 | Fusion Pro Twin-Flex, 1,8m |
| Product sheet | Fusion Pro Twin-Flex |
| User manual | Manual Cresto Fall Arrest Lanyard / Lanyard |
| Declaration of Conformity | Fusion Twin-flex Pro - EU 20210621 |
