Fusion Single-Flex S is a double fall arrest lanyard with flexible webbing and with an ANSI certificate."12ft" The maximum user weight is 140 kg.
Fusion Pro Single-flex
Fall arrest Lanyard 1601
- CE and ANSI certified
- Approved for 140 Kg
- Elastic webbing
Fusion Single-Flex S is a double fall arrest lanyard with flexible webbing and with an ANSI certificate."12ft" The maximum user weight is 140 kg.
Color
Size
Description
A single fall arrest lanyard provides secure protection when working on skylifts and scaffolding.

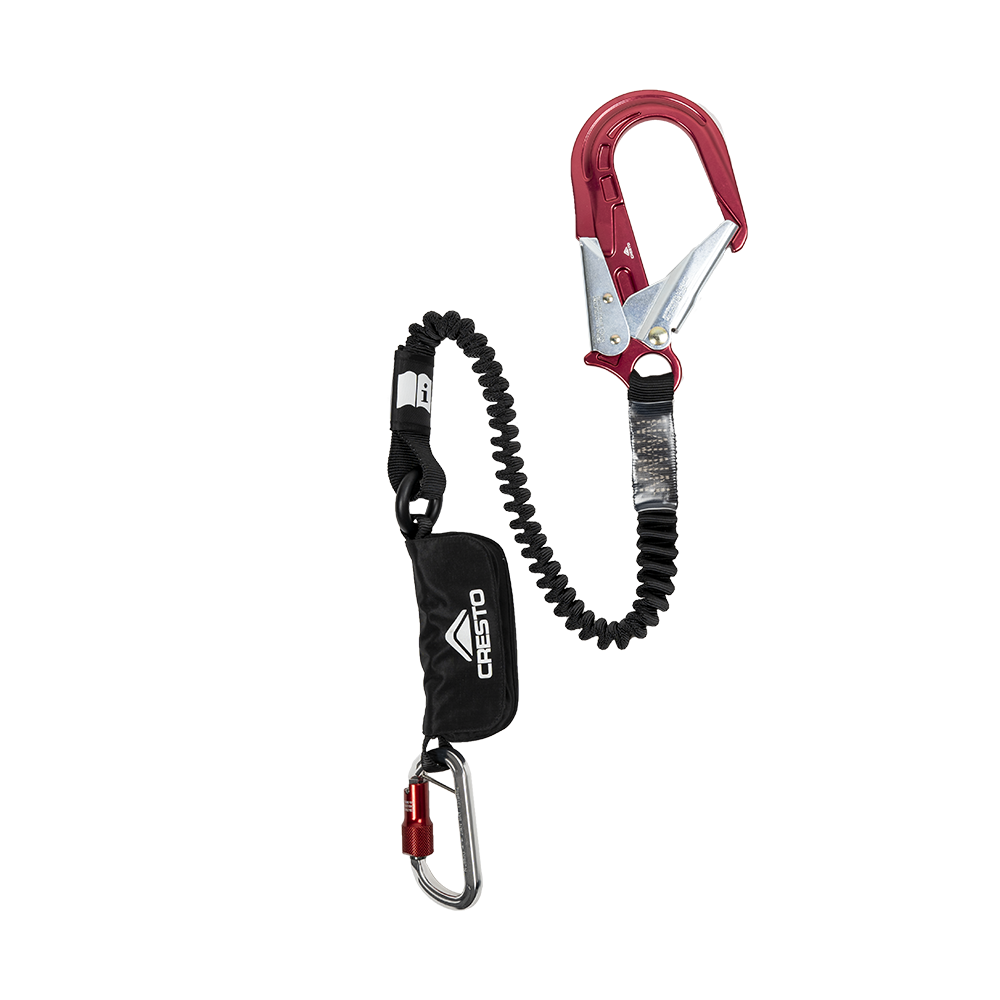

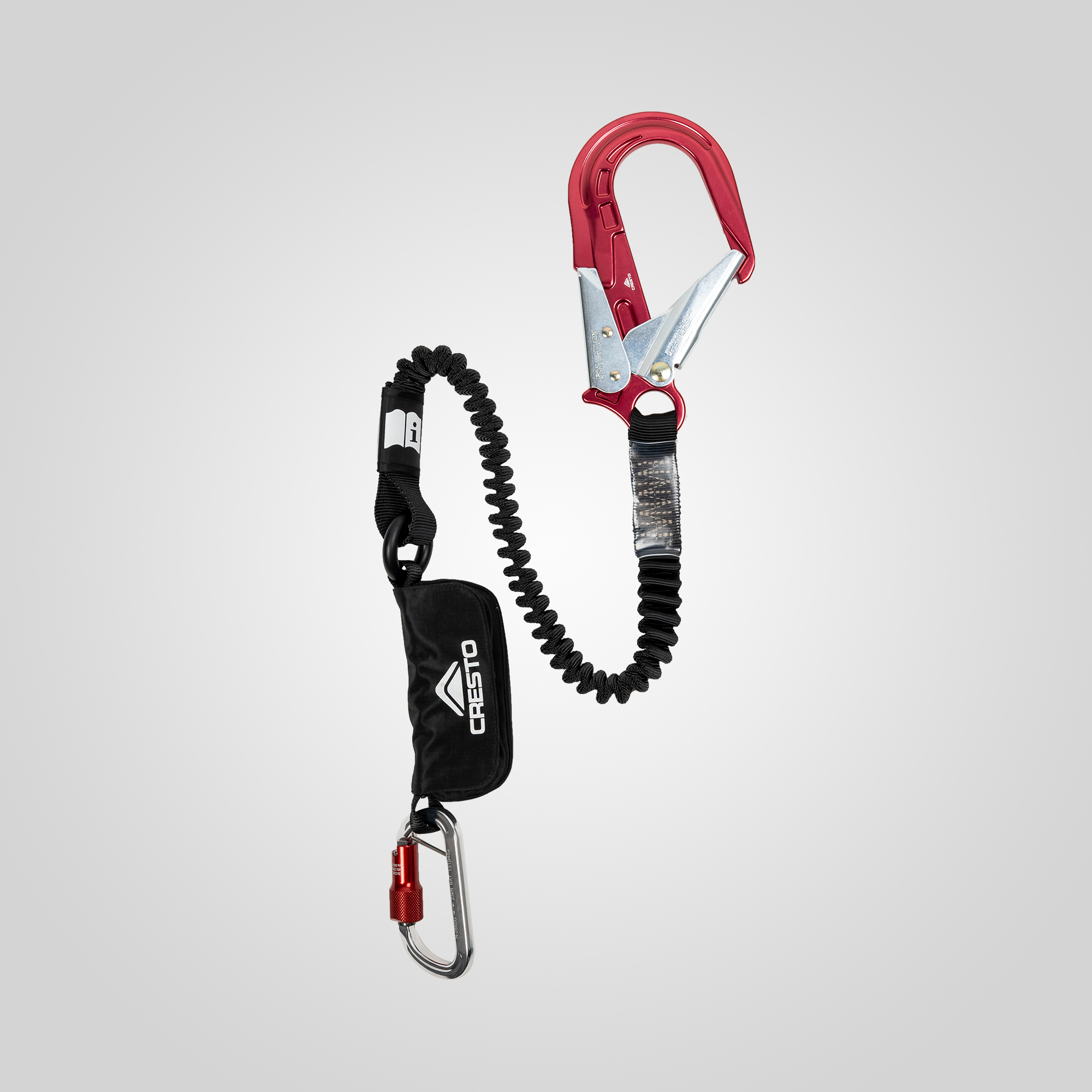

Fusion Single-Flex S is manufactured as a flexible tube with internal elasticity, which allows you to stretch the line to a maximum length of 1.8 meters. At the beginning of the rope there is an external absorber mounted which is released in case of a fall. Unlike Fusion Twin-Flex S this fall arrest lanyard is ANSI certified and are approved for a user weight up to 140 kg. Between the absorber and the lanyard there is an aluminum ring to increase flexibility in use
PRODUCT PROPERTIES |
|
| Attaching connector 1 | ANSI certified triple lock carabiner in aluminum |
| Attaching connector 2 | Big ANSI certified aluminum hook with 64 mm opening |
| Energy absorber | Yes |
| Fall indicator | Yes |
| Mechanics | Tear-webbing absorber |
| Maximum number of users | 1 |
| Maximum load (kg) | 140.0 |
| Minimum working temperature (c) | -40.0 |
| Maximum working temperature (c) | 100.0 |
| Minimum breaking strength - MBS (kN) | 22.0 |
CLASSIFICATION |
|
| PPE-category | Category 3 |
| EN-standard | EN 355 : 2002 |
| Notified body | 1019, VVUU, a.S., Pikartska 1337/7 716 07 Ostrava - Radvanice Czech Republic |
| Other standards | ANSI Z359.13 |
ANNUAL INSPECTION |
|
| Annual inspection | Yes, every 12 months |
| Life span | 10 + 2 years. Product lifecycle 10 years + 2 years stock keeping |
| Warranty | 2+1 year when registered in Inspector |
| Identification | Serial number |
| RFID | Yes |
DOCUMENTS |
|
| Declaration of Conformity | Yes |
| Manual languages | Czech (CS), Danish (DA), Dutch (NL), English (EN), Estonian (ET), Finnish (FI), French (FR), German (DE), Greek (EL), Italian (IT), Norwegian (NO), Slovak (SK), Spanish (ES), Swedish (SV) |
| 012203845 | Cresto, Fusion Pro Singel-Flex |
| Product sheet | Fusion Pro Single-flex |
| User manual | Manual Cresto Fall Arrest Lanyard / Lanyard |
| Declaration of Conformity | Fusion Single Pro Flex-EU 20210621 |
