The latest generation automatic device with superior properties.
ED Pro X Basic
Evacuation device, bag
- Intuitive and easy to use
- Ensures function at long and heavy descents
- Water sealed brake housing
The latest generation automatic device with superior properties.
Color
Size
Description
EPX is a intuitive and easy to use evacuation device for a applications within most areas. With a construction that ensures function at long and heavy descents and at the same time isolates heat from sensitive parts of the device.

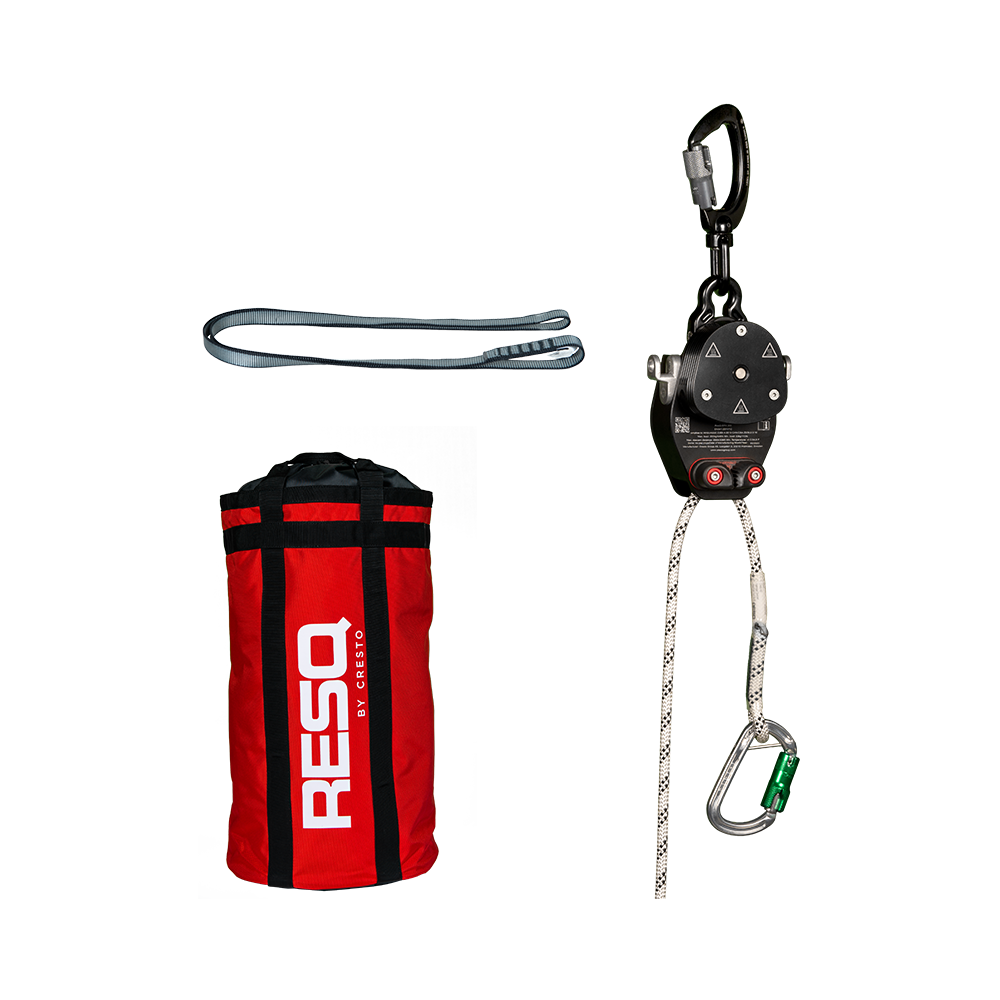

EPX Minimal is delivered as a complete set with anchorage sling and bag for quick access to the equipment.
Segments
- General industry
- Tower climber
- MEWPs
- Offshore
- Scaffolding
- Wind energy
Product includes
PRODUCT PROPERTIES |
|
| Product includes | Device, rope, 1,2m anchor sling and bag |
| Packinging type | Bag |
| Attaching connector 1 | Device: Aluminum carabiner with swivel |
| Attaching connector 2 | Rope: Aluminum carabiner |
| Gate strength (kN) | 16.0 |
| Gate feature | twist lock |
| Adjustable under load | Yes |
| Energy absorber | No |
| Fall indicator | No |
| Mechanics | Centrifugal brake |
| Descent speed (m/s) | 0,9-1,6 |
| Maximum number of users | 2 |
| Maximum rope length (m) | 255.0 |
| Maximum descent | 255m |
| Minimum load (kg) | 40.0 |
| Maximum load (kg) | 200.0 |
| Minimum working temperature (c) | -30.0 |
| Maximum working temperature (c) | 50.0 |
| Minimum breaking strength - MBS (kN) | 20.0 |
| Material | Polyamide, Aluminum , Techno polymers |
| Functions | Descend function |
| Rope | Polyamide/polyamide 32-braided kermantel construction 9,6mm |
CLASSIFICATION |
|
| PPE-category | Category 3 |
| EN-standard | EN 341 : 2011 |
| Notified body | 0200, FORCE Certification A/S, Main office, Park Allé 345, DK-2605 Brondby, Denmark |
| Other standards | ANSI Z359.4-2013, CSA Z259.2.3-12 |
ANNUAL INSPECTION |
|
| Annual inspection | Yes, every 12 months |
| Life span | 10 years |
| Warranty | 2 year |
| Identification | Serial number |
| RFID | Yes |
DOCUMENTS |
|
| Declaration of Conformity | Yes |
| Manual languages | English (EN), Swedish (SV), Norwegian (NO), Danish (DA), Finnish (FI), German (DE), French (FR), Spanish (ES), Portuguese (PT), Italian (IT), Estonian (ET), Polish (PL), Chinese (ZH), Turkish (TR), Czech (CS), Dutch (NL) |
| 087601111025 | RESQ, EPX200 Basic, 25m, bag |
| 087601111060 | RESQ, EPX200 Basic, 60m, bag |
| 087601111015 | RESQ, EPX200 Basic, 15m, bag |
| 087601111020 | RESQ, EPX200 Basic, 20m, bag |
| 087601111050 | RESQ, EPX200 Basic, 50m, bag |
| 087601111075 | RESQ, EPX200 Basic, 75m, bag |
| 087601111100 | RESQ, EPX200 Basic, 100m, bag |
| Product sheet | ED Pro X Basic |
| Declaration of Conformity | RED Pro X and ED Pro - EU 20200311 |
| User manual | RPX200 & EPX200 - version 2 |
