Carriage for fixed wire systems and up to a work angle of 180°.
CMBR
Carriage for wire systems
- Fits wire systems
- Easy to connect and disconnect
- Bi-directional carriage locking
Carriage for fixed wire systems and up to a work angle of 180°.
Color
Description

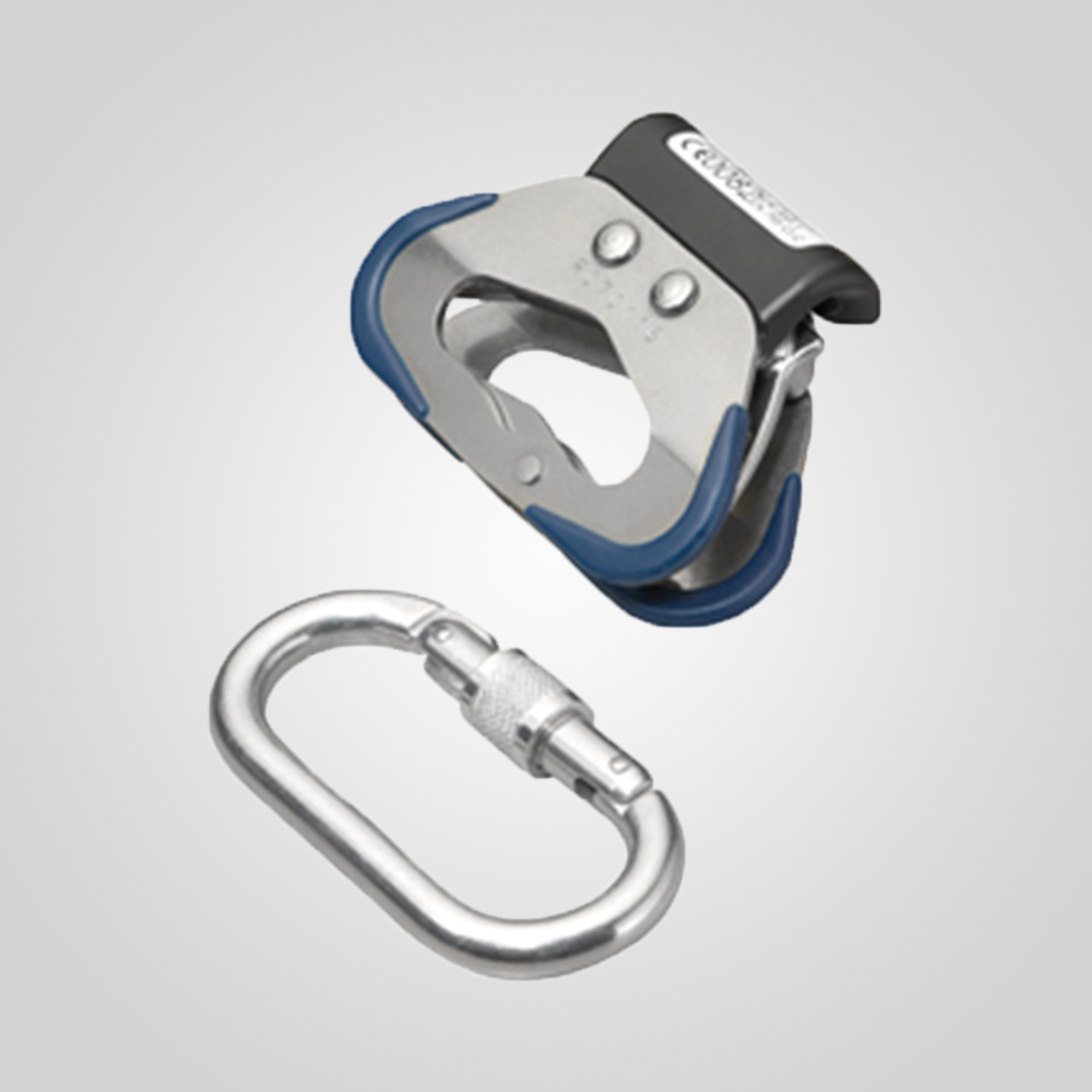

CMBR is a carriage from Vertic that fits fixed wire systems. The carriage have bi-directional locking and is usable from 0° to 180°. CMBR is easy to connect and disconnect and moves freely among the wire supports.
Segments
- General industry
- Tower climber
- Telecom
- Wind energy
PRODUCT PROPERTIES |
|
| Energy absorber | No |
| Fall indicator | No |
| Maximum number of users | 1 |
| Maximum load (kg) | 100.0 |
| Material | Stainless steel |
CLASSIFICATION |
|
| EN-standard | EN 353-2 : 2002, EN 795 : 2012 |
| Notified body | 0158, DEKRA Testing and Certification, Dinnendalhlstr 9, DE-44809 Bochum, Germany |
ANNUAL INSPECTION |
|
| Annual inspection | Yes, every 12 months |
| Life span | 10 years |
| Warranty | 2+1 year when registered in Inspector |
| Identification | Serial number |
| RFID | No |
DOCUMENTS |
|
| Declaration of Conformity | Yes |
| 012296158 | Vertic, CMBR, Reversible carriage with karabiner |
| Product sheet | CMBR |
| Declaration of Conformity | Carriage CMB - EC 20150601 |
